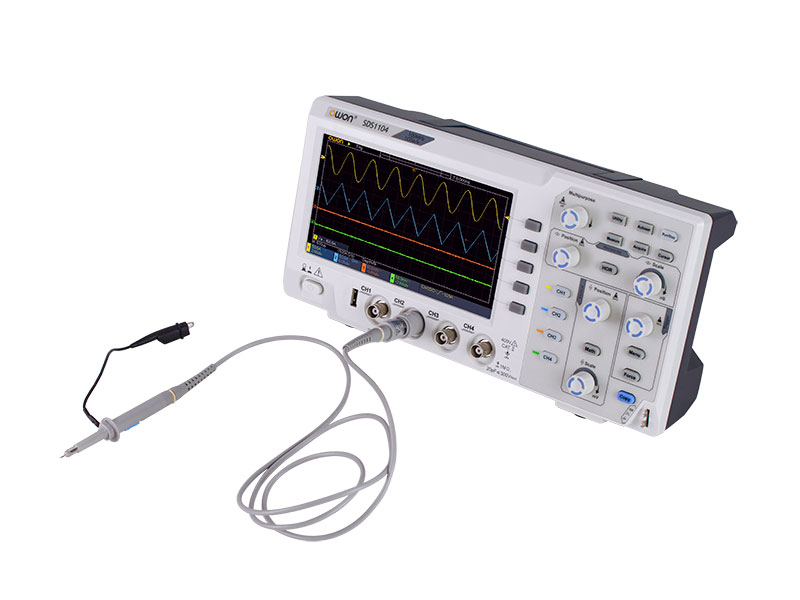

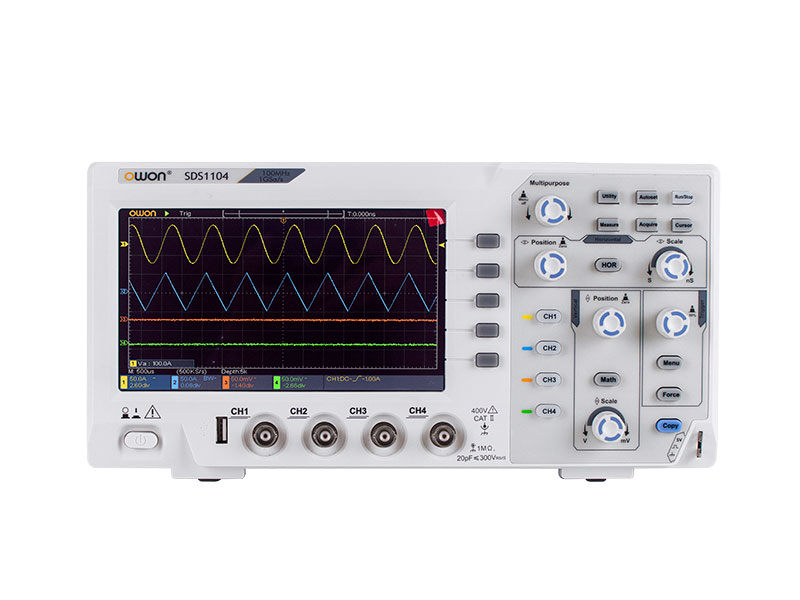

SDS1104 – Osciloscopio Digital Owon 100 MHz 4 CH


– Osciloscopio de Almacenamiento Digital
– Ancho de banda: 100MHz
– 2 canales
– Frecuencia de muestreo: 1GS/s
– Diseño ultrafino
– LCD de alta resolución de 7 pulgadas
– SCPI y LabVIEW soportados

$62,500.00

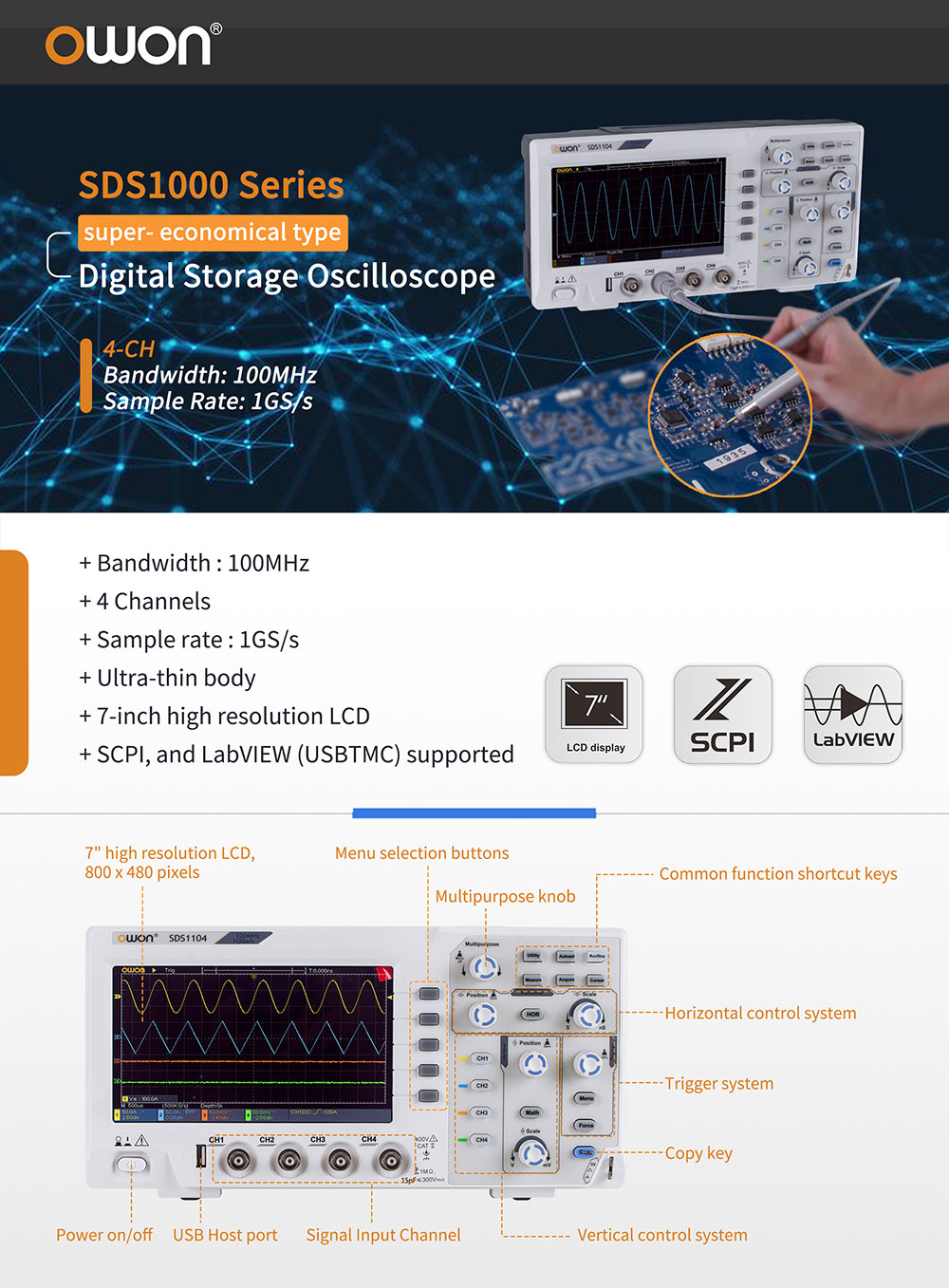

CARACTERÍSTICAS PRINCIPALES

– Osciloscopio de Almacenamiento Digital
– Ancho de banda: 100MHz
– 4 canales
– Frecuencia de muestreo: 1GS/s
– Diseño ultrafino
– LCD de alta resolución de 7 pulgadas
– SCPI y LabVIEW soportados

DESCARGAR MANUAL DESCARGAR FICHA TÉCNICA DESCARGAR SOFTWARE





ESPECIFICACIONES TÉCNICAS

– Bandwidth: 100MHz
– Sample Rate: 1GS/s
– Horizontal Scale (s/div): 2ns/div – 1000s/div, step by 1 – 2 – 5
– Channel: 4
– Display: 7″ color LCD, 800 x 480 pixels
– Record Length: 20K
– Probe Attenuation Factor: 1X, 10X, 100X, 1000X
– Input Coupling: DC, AC , and GND
– Vertical Sensitivity: 5mV/div – 5V/div (at input)
– Trigger Type: Edge, Video
– Trigger Mode: Auto, Normal, and Single

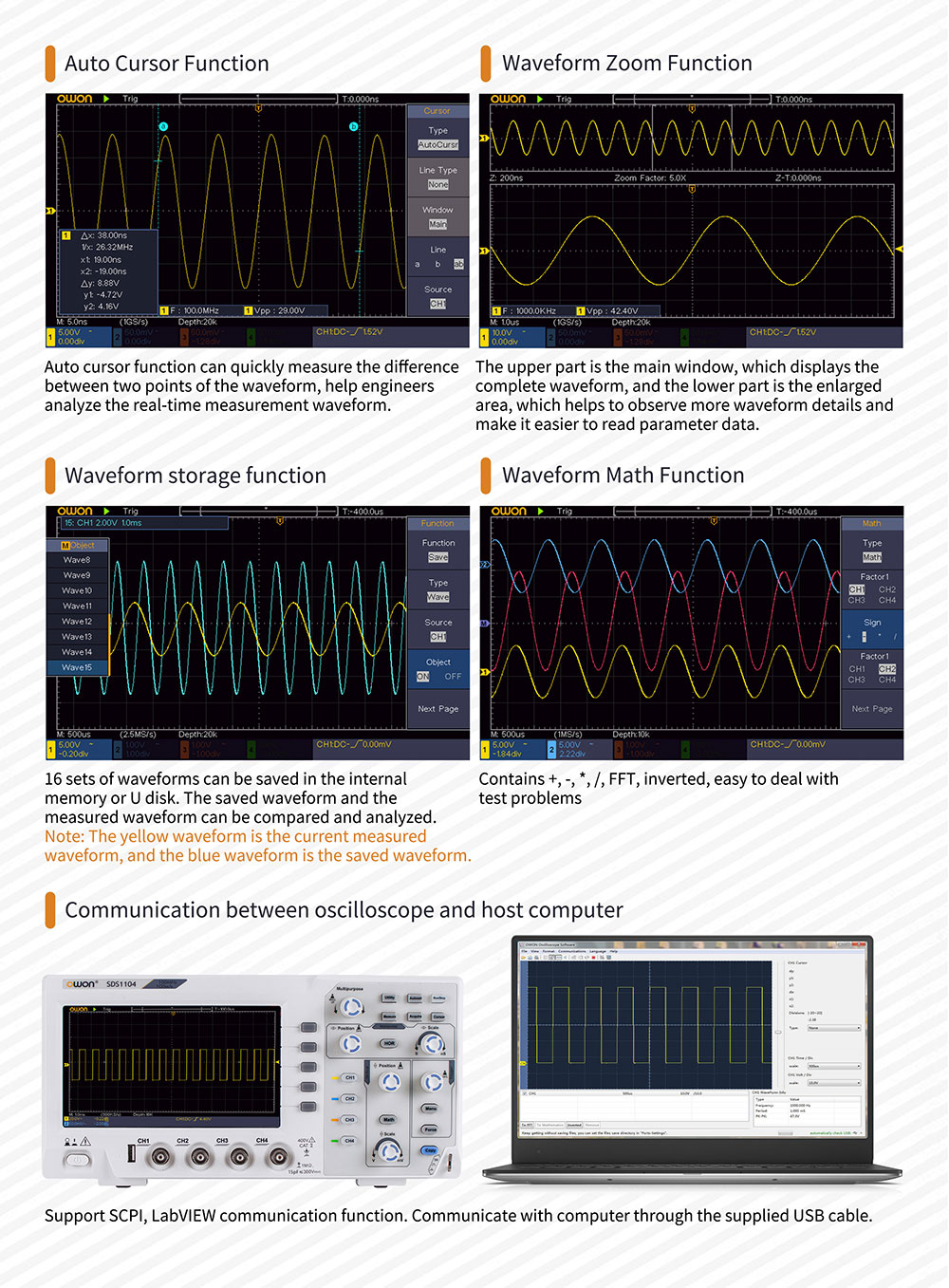

– Cursor Measurement: △V, △T between cursors,△V and △T between cursors,Auto-cursors

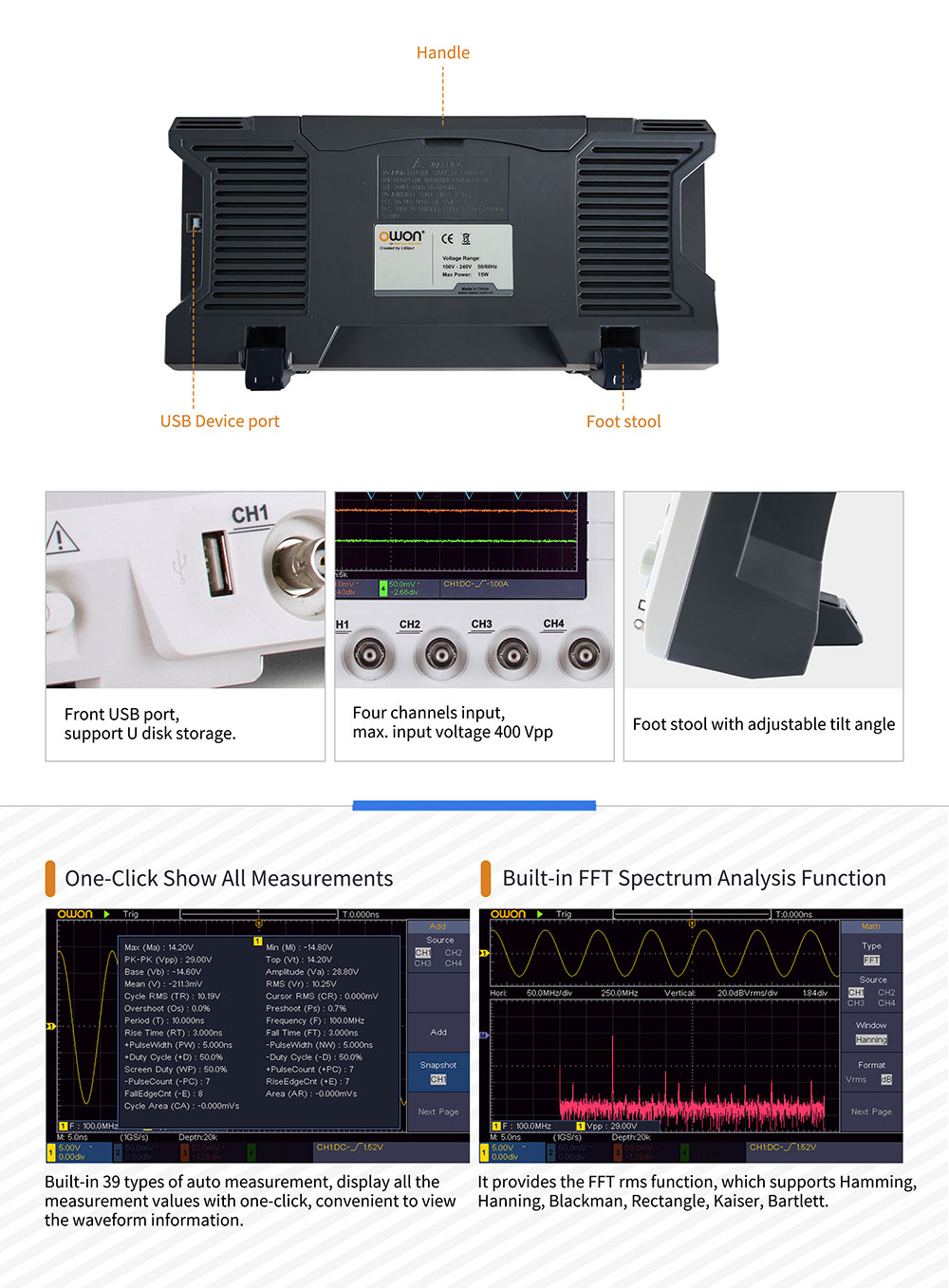

– Automatic Measurement: Vmax, Vmin, Vpp, Vtop, Vbase, Vamp, Vavg, Vrms, Cycle RMS, Cursor RMS, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, +Width, -Width, +Duty Cycle, -Duty Cycle, Screen Duty, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Delay A→B ↑, Delay A→B↓, Phase A→B ↑, Phase A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, Cycle Area
– Waveform Math:+, -, x, ÷, invert, FFT
– Waveform Storage: 16 waveforms
– Communication Interface: USB host, USB device
– Frequency Counter: available

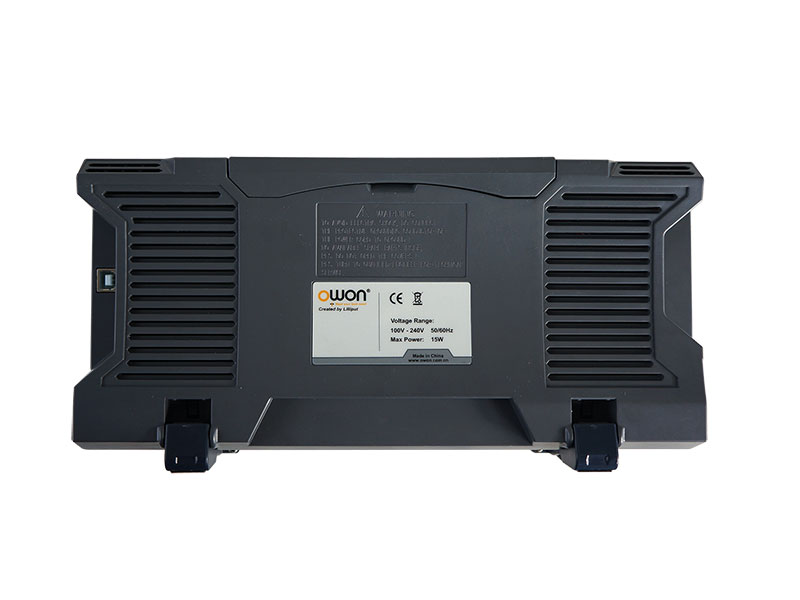

– Power Supply: 100V – 240V AC, 50/60Hz, CAT II
– Power Consumption:<15W
– Dimension (W x H x D): 301 x 152 x 70 mm
– Device Weight: 1.10 kg

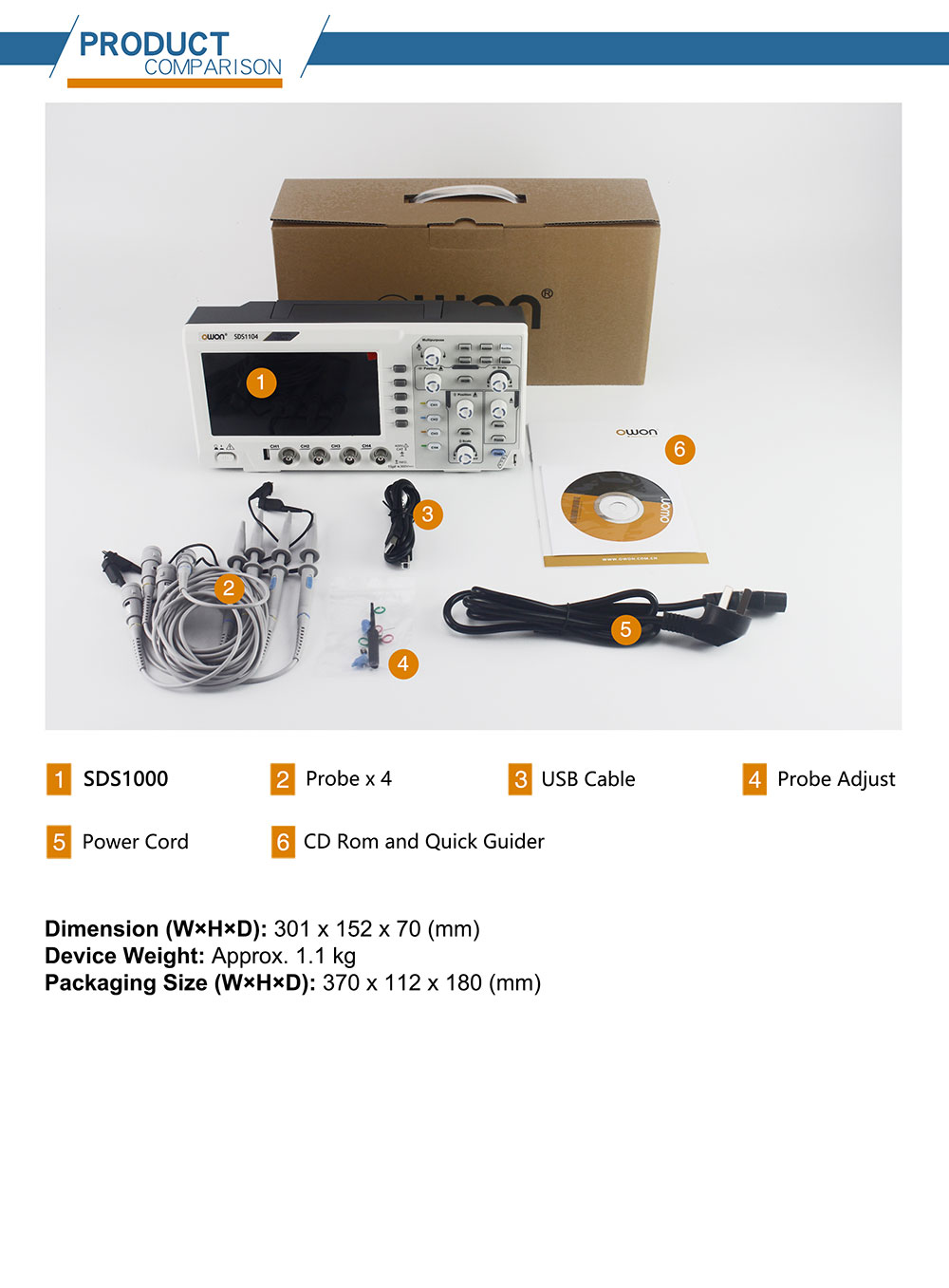

INCLUYE

– Cable de alimentación
– Cable USB
– CD Rom con el software
– Manual de usuario
– 4 Puntas de prueba x1: x10
– Bolso opcional
