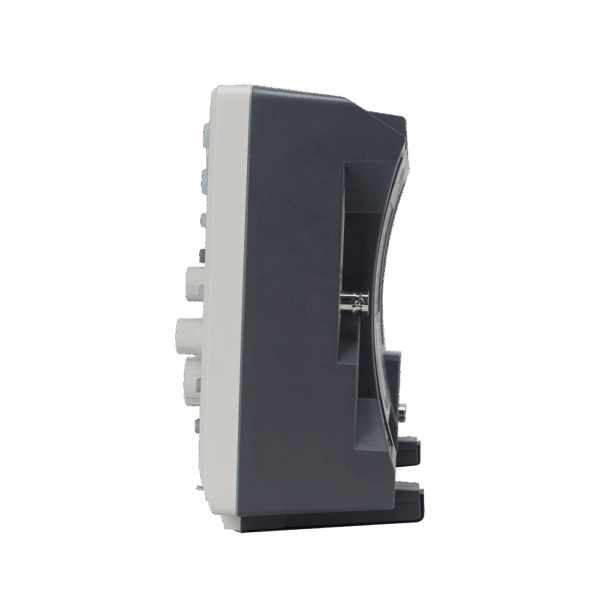

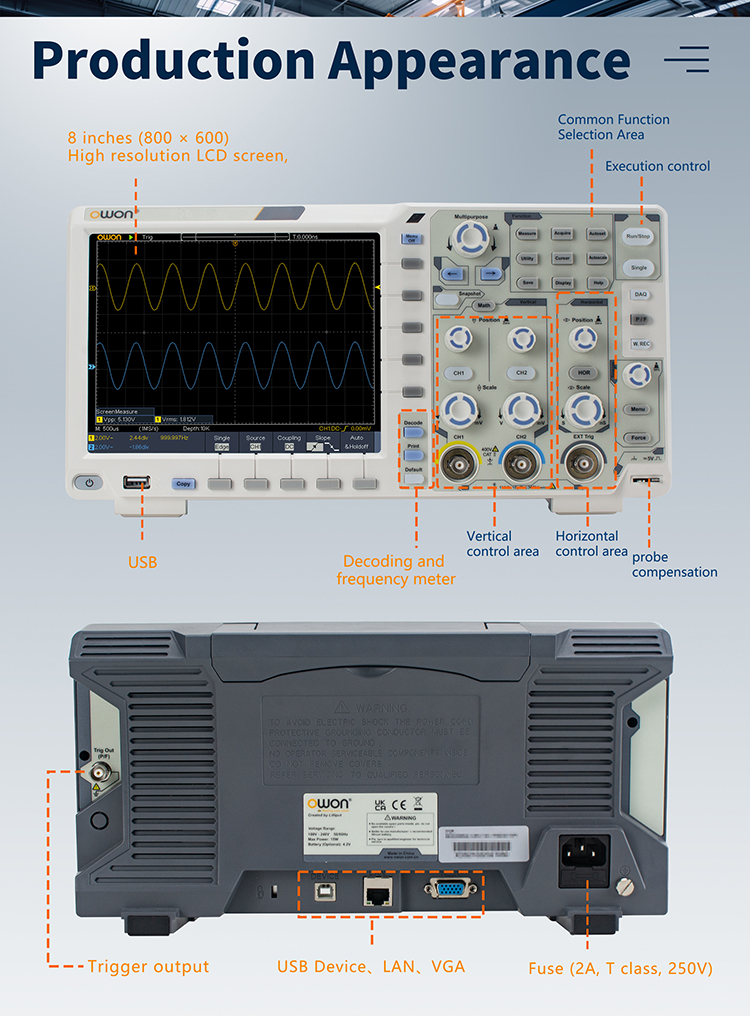

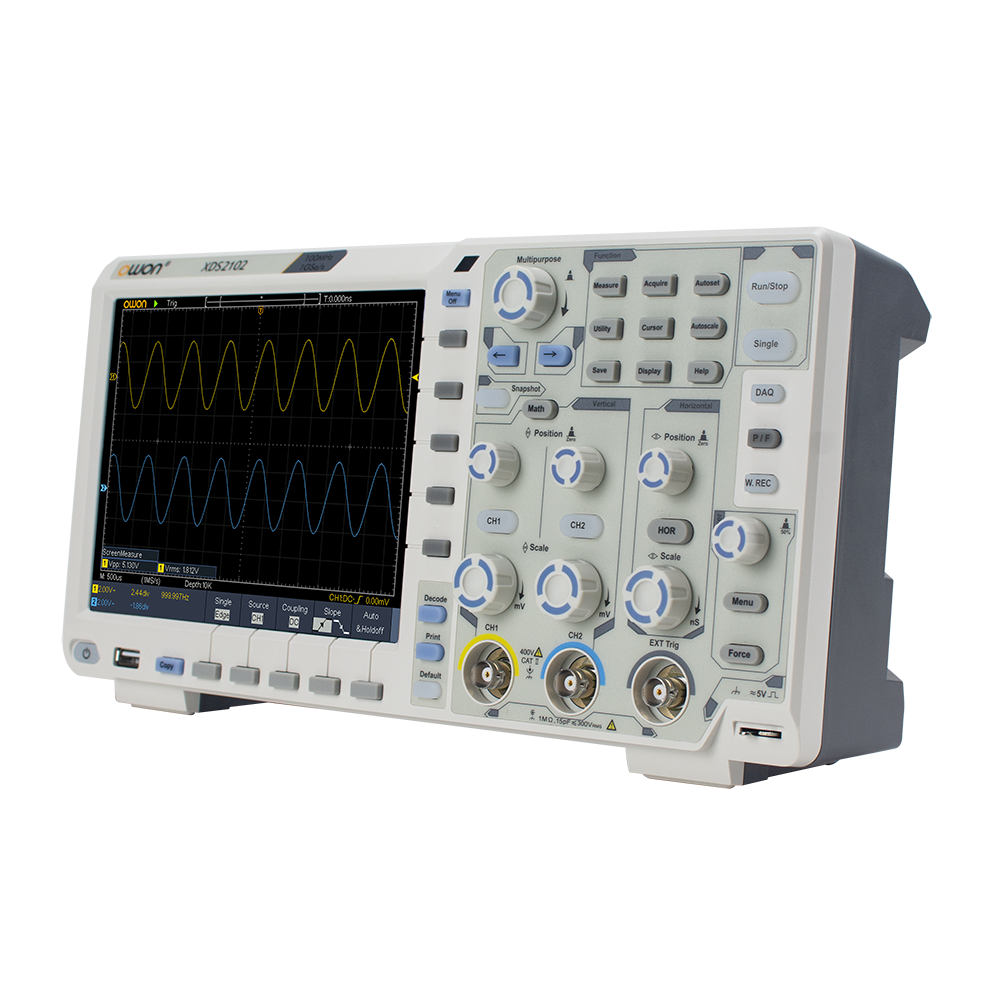

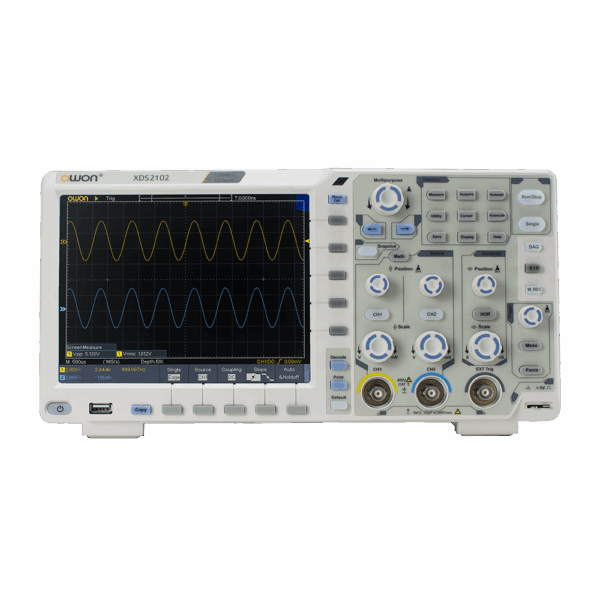

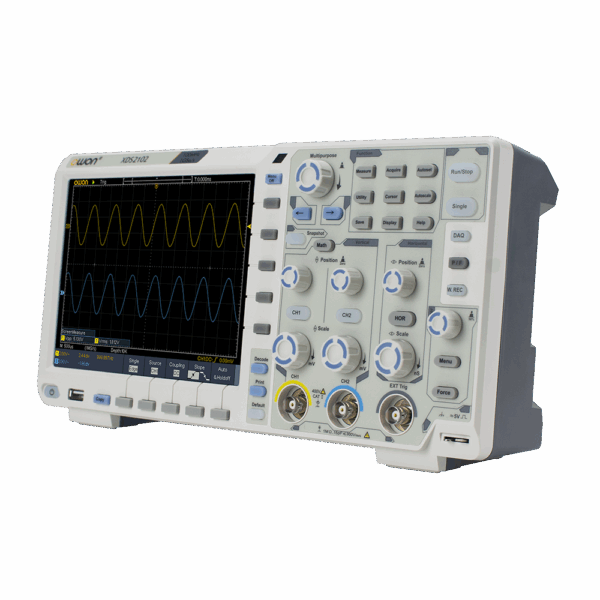

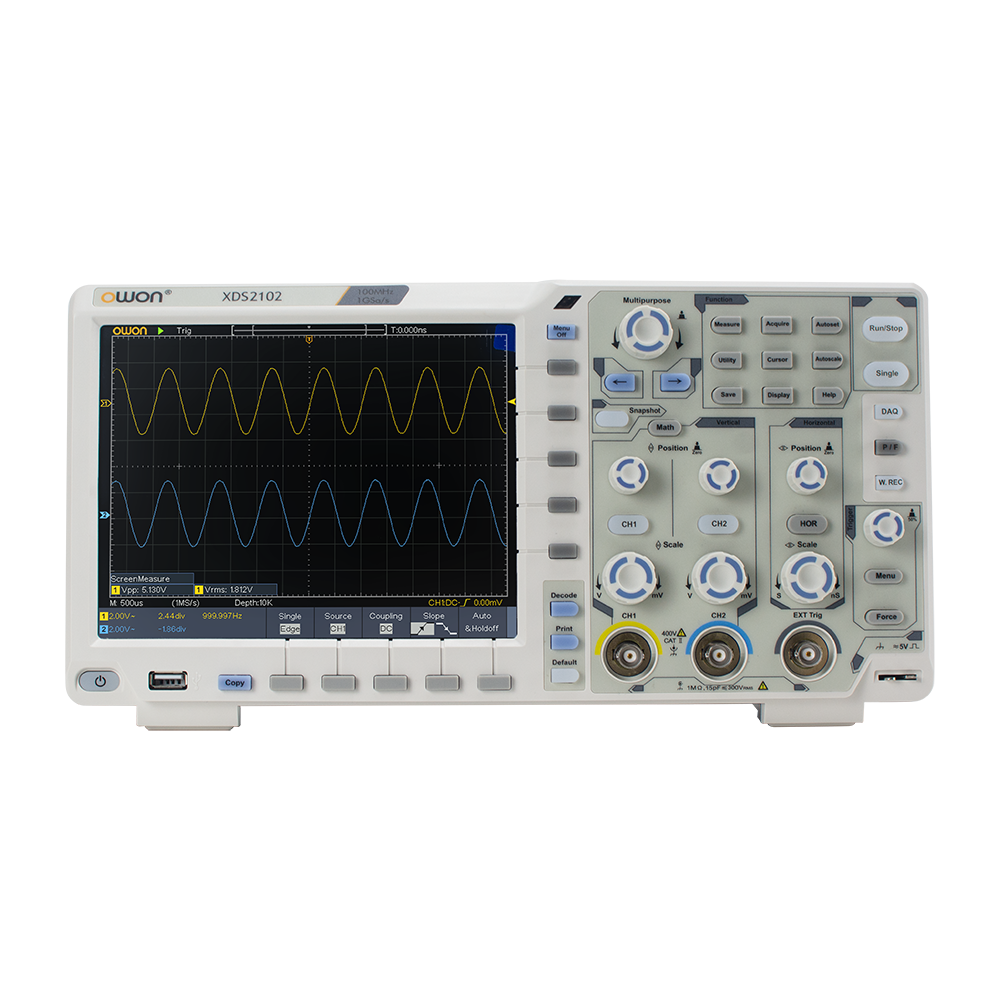

XDS2202 – Osciloscopio Digital Portable Owon 200 MHz 8 Bits 2 CH

CARACTERÍSTICAS PRINCIPALES

+ Ancho de banda de 200 MHz
+ La frecuencia de muestreo en tiempo real es de hasta 1Gs

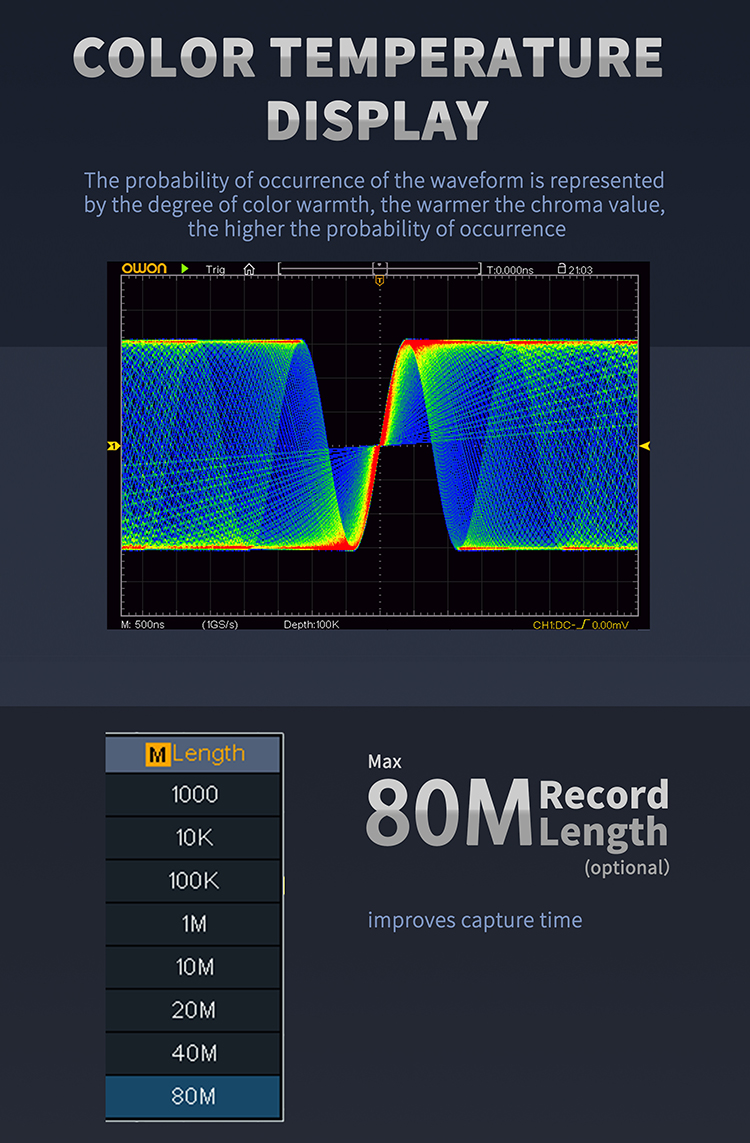

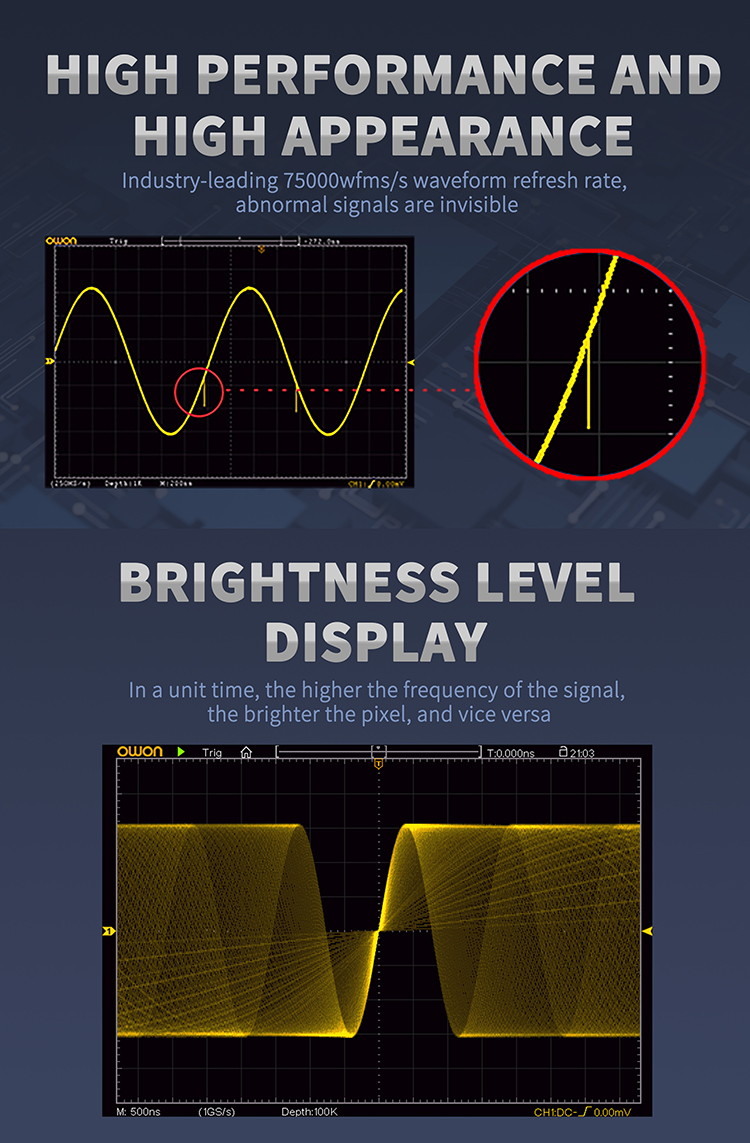

+ Profundidad de almacenamiento de hasta 80M, frecuencia de captura de forma de onda de hasta 75000 wfm/s

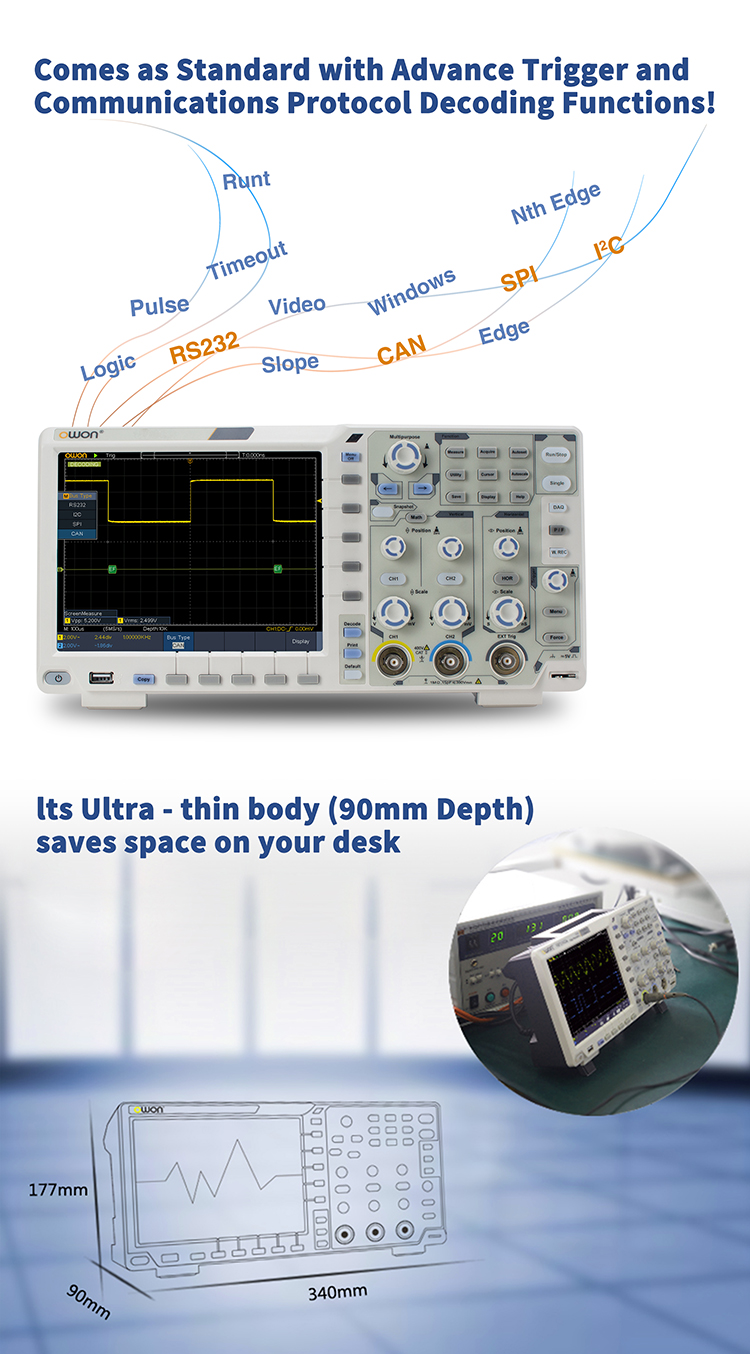

+ Funciones de disparo y decodificación de bus: borde, video, ancho de pulso, pendiente, subamplitud, sobreamplitud, (tiempo de espera), borde N, lógica, I2C, SPI, RS232, función de disparo CAN y función de decodificación I2C, SPI, RS232, CAN
+ Funciones de cálculo de forma de onda (FFT, suma, resta, multiplicación, división, definidas por el usuario)
+ Abundantes interfaces: USB Host & Device, LAN, Pass/Fail, interfaz VGA, conveniente para expansión de video y demostración de enseñanza

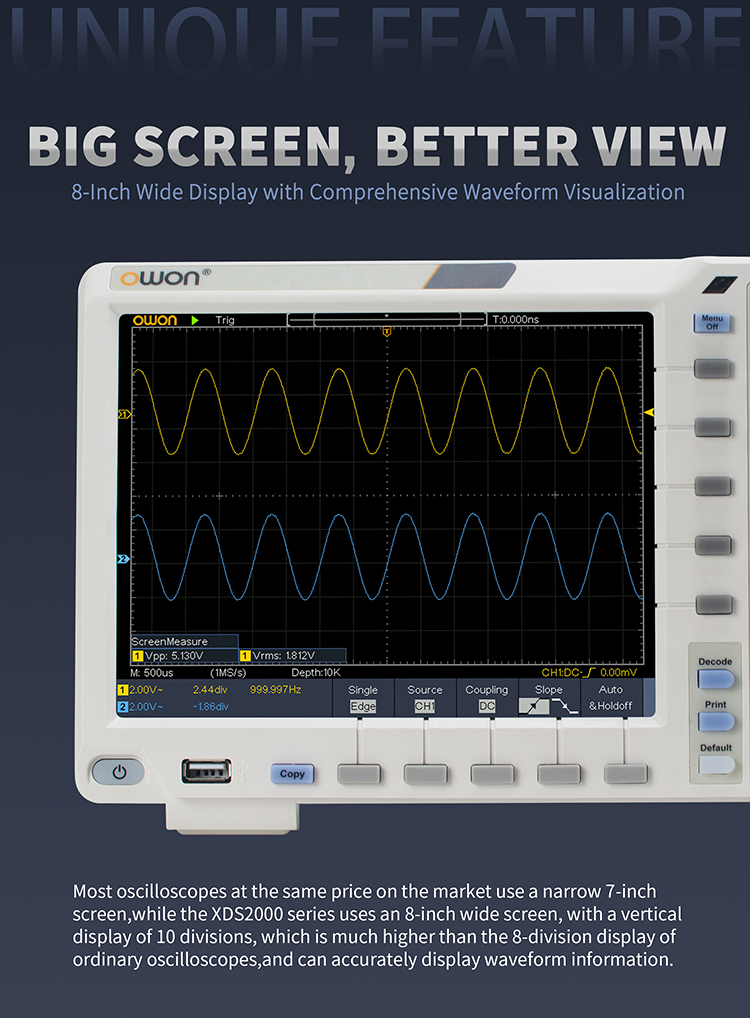

+ Admite comandos de control remoto SCPI + Pantalla táctil LCD de alta resolución de 8 pulgadas (800×600)

DESCARGAR MANUAL DESCARGAR FICHA TÉCNICA DESCARGAR SOFTWARE

ESPECIFICACIONES TÉCNICAS

Bandwitch 200 MHz
Sample Rate 1GS/s
Vertical Resolution (A/D) 8 bits
Record Length 40M
Waveform Refresh Rate 75,000 wfms/s
Horizontal Scale 2ns/div – 1000s/div step by 1 – 2 – 5
Rise Time (at input, typical) =1.7ns
Display 8″ color LCD, 800 x 600 pixels
Input Impedance 1MO : 2 %, i n parallel with 15pF : 5pF; (*50O ? 2%)
Channel 2 + 1 external ; Channel Isolation 50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage 1MO = 300Vrms; 50O = 5Vrms
DC Gain Accuracy: 3%
DC Accuracy: average≥16：±(1,5% reading + 0.05 div) for △V
Probe Attenuation Factor 0.001X – 1000X, step by 1 – 2 – 5
LF Respond (AC, -3dB) ≥10Hz (at input, AC coupling, -3dB)
Sample Rate / Relay Time
Accuracy ±1ppm
Interpolation sin(x) / x
Interval (△T) Accuracy
(full bandwidth)
Single: ±(1 interval time + 1ppm x reading + 0.6ns);
Average > 16: ±(1 interval time + 1ppm x reading + 0.4ns)
Input Coupling DC, AC, and GND
Vertical Sensitivity 1mV/div – 10V/div (at input)
Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,
and CAN.
Bus Decoding I2C, SPI, RS232, and CAN.
Trigger Mode Auto, Normal, and Single
Vertical Range ±2V ( 1mv/div – 50mv/div), ±20V ( 100mv/div – 1V/div), ±200V (2V/div – 10V/div)
Line / Field Frequency (video) NTSC, PAL and SECAM standard
Cursor Measurement △V, and △T between cursors, △V and △T between cursors, and auto- cursors
Automatic Measurement
Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp,
Overshoot, Phase, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay
A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count
Waveform Math ＋, －, ×, ÷, FFT
Waveform Storage 100 waveforms
Lissajou’s
Figure
Bandwidth full bandwidth
Phase Difference ±3 degrees

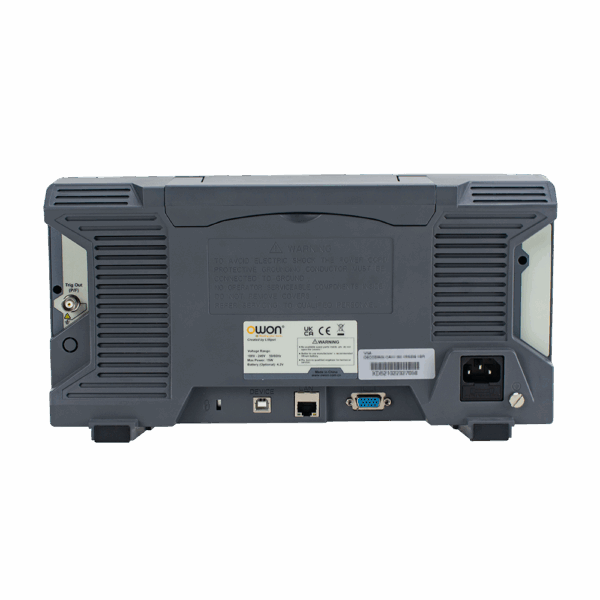

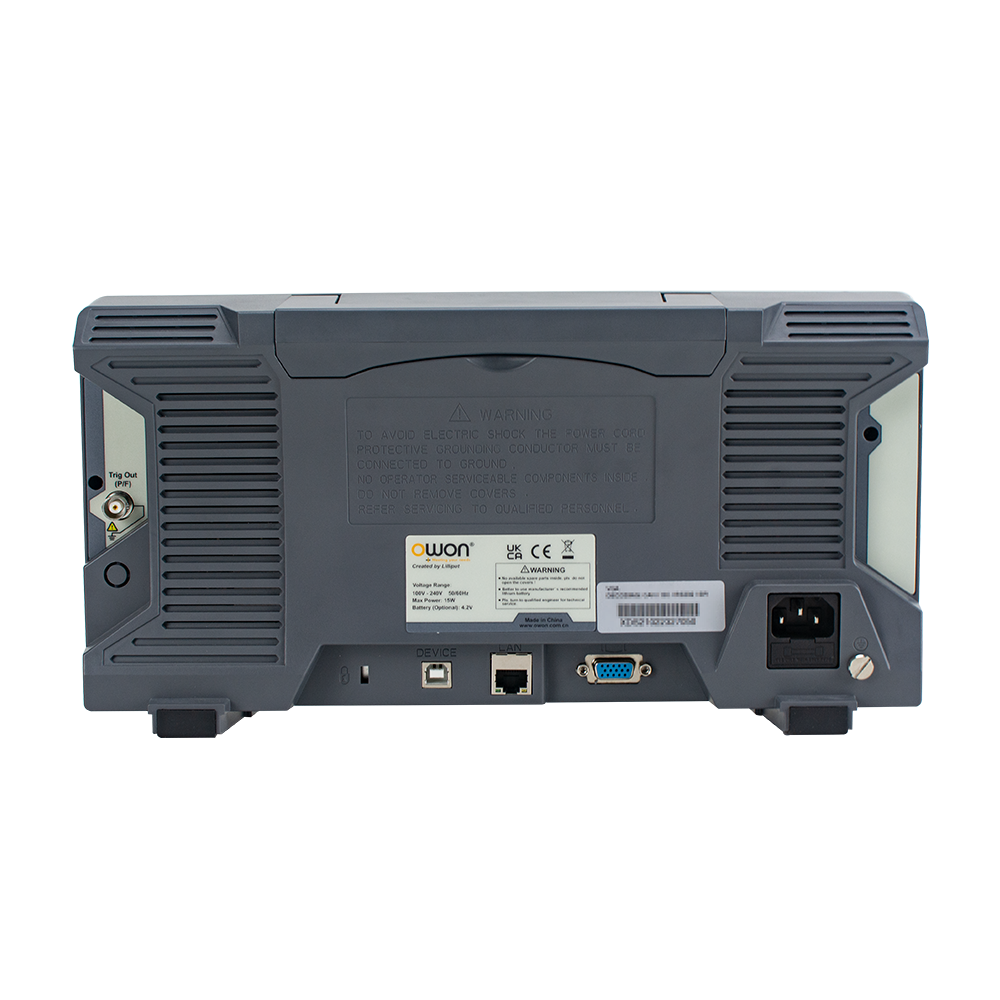

Communication Interface USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
Frequency Counter available
Power Supply 100V – 240V AC, 50/60Hz, CAT II
Power Consumption ＜15W
Fuse 2A, T class, 250V
Battery (optional) 3.7V, 13200mAh

INCLUYE:

– Cable de alimentación
– Cable USB
– CD Rom con el software
– Manual de usuario
– 2 Puntas de prueba x1 : x10
– Bolso opcional
